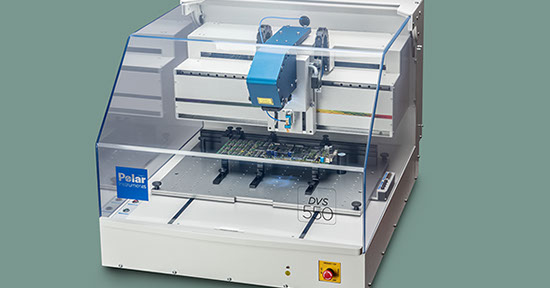

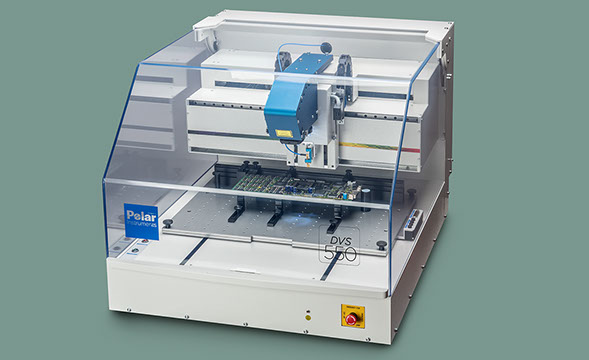

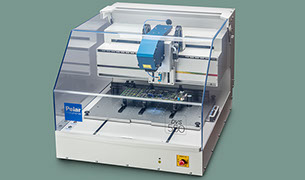

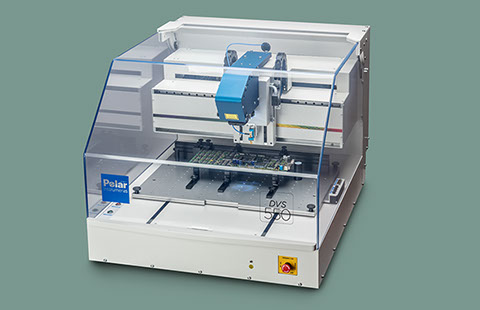

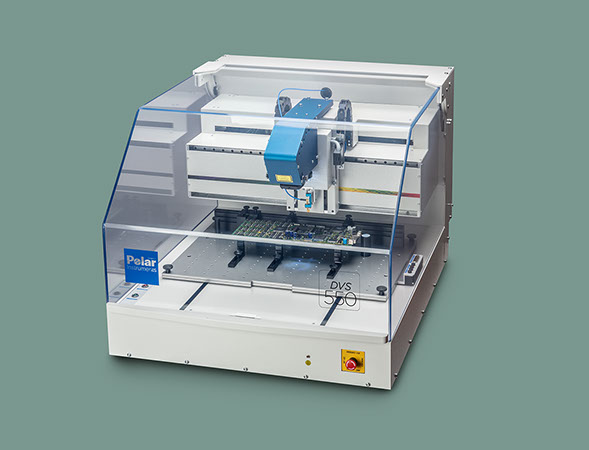

DVS 550

Design Verification System

Automatic verification of Signal Integrity on High-Speed PCB assemblies.

Brochure download

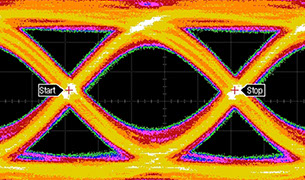

Ensuring Signal Integrity is of paramount importance for a reliable Circuit Board Function not least as a result of constantly increasing digital data rates on modern High-Speed PCB assemblies.

Manufacturers are confronted with reduced design-to-market cycles and are looking for ways to save time in the prototype design process. Manual design verification has been a time consuming process so far causing unnecessary delays in the development stage.

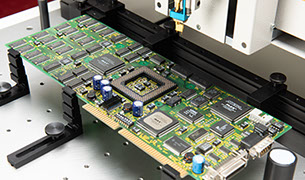

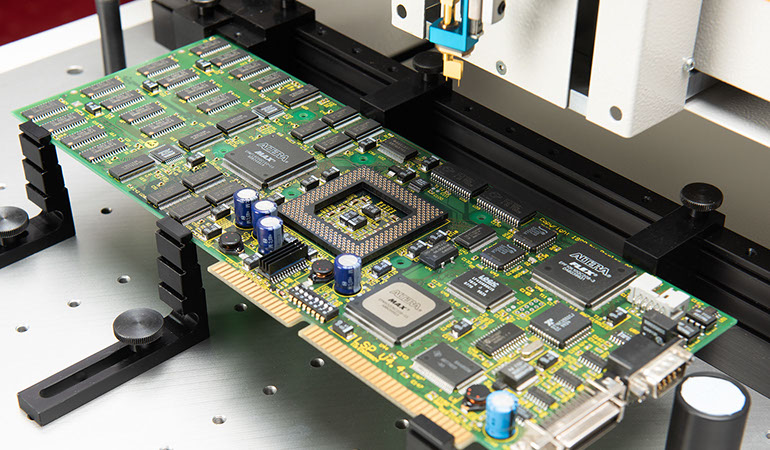

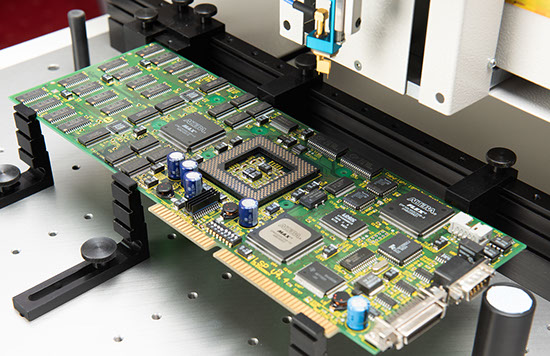

Characterization of Signal Integrity on Prototype Builds.



The DVS 550 is able to test and document measurements on hundreds of nets in less than a few hours while manual measurements would take weeks of valuable engineering time.

The DVS 550 System has been designed for measuring signal frequencies into the GHz range using custom designed Coaxial Probing Technology contrasting significantly conventional Flying Probe Systems with a focus on detecting typical manufacturing faults only. The probing technology in these standard systems is mostly not suitable for carrying high frequency signals.

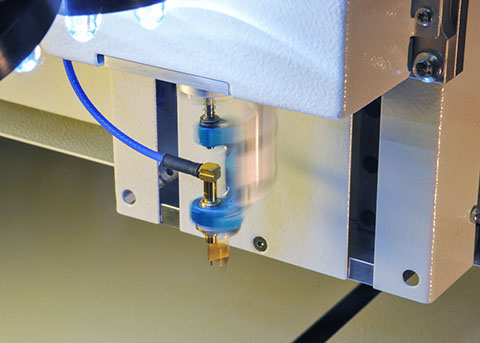

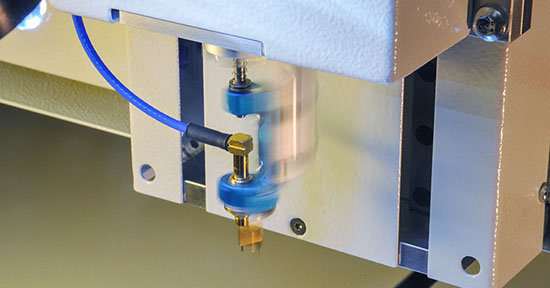

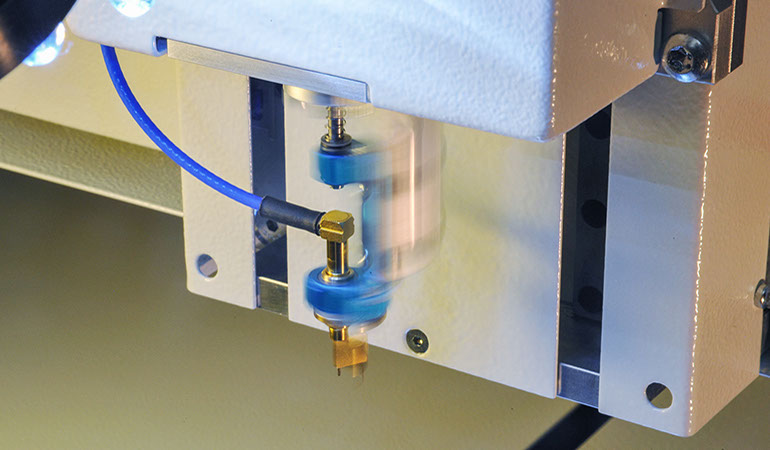

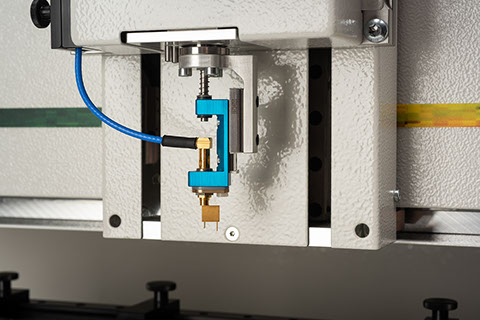

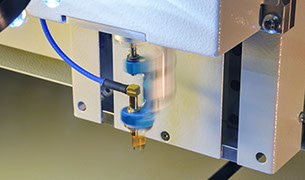

Additionally the DVS 550 System includes a specially designed Rotating Probe Head for probing of any Signal-Ground Test Point Operation.





Open platform architecture

An open ActiveX software programming interface allows control of the DVS 550 from a variety of different applications. Test sequences may easily be created by using industry standard software such as LabVIEW™ and TestStand™ from National Instruments. A set of predefined remote control commands such as move to testpoint, set rotation angle, touching a testpoint are compiled into a sequence and automatically executed.



Controlling external Test- and Measurement Hardware

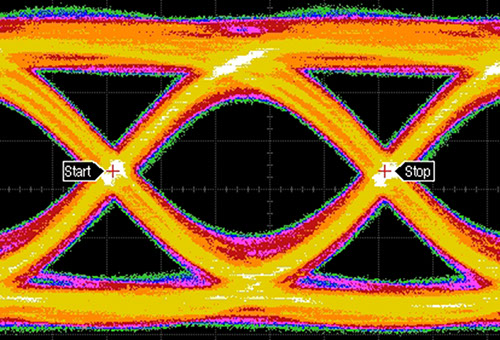

The DVS 550 is an Automated Probe for measurements replacing the previously time consuming procedure carried out manually. A highly flexible, low loss coaxial cable feeds the signal at the probe tip to Test-and Measurement Equipment such as High Speed Oscilloscopes, Spectrum Analyzers or Time Domain Reflectometers. Control external hardware via USB, Ethernet, GPIB, RS232. The underlying control software synchronizes the sequence of probe movement commands with the individual measurements and result documentation.



Test Application for Generating and Debugging of test sequences

A special test application provides all remote control commands of the DVS 550 with a single mouse click, thus aiding the programming process. This feature allows all movement commands to be executed by hand for debugging purposes.  As a result test hardware settings are being optimized prior to including individual steps in a sequence.



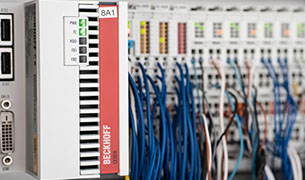

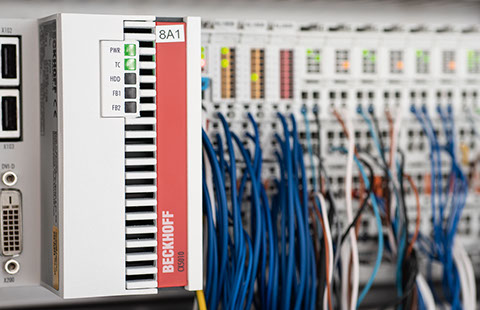

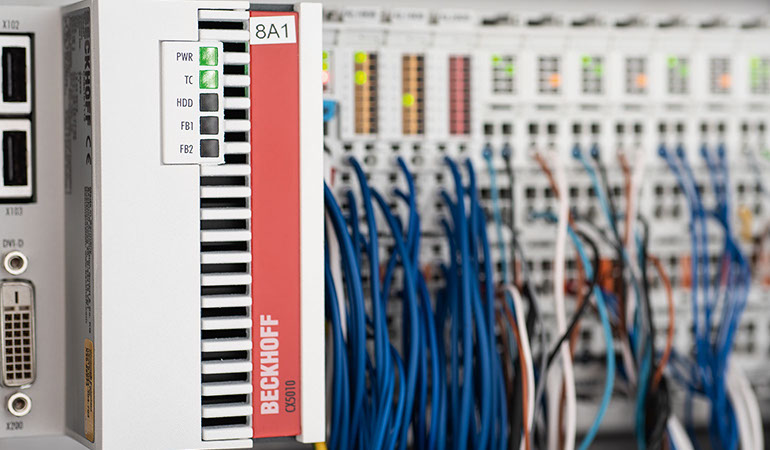

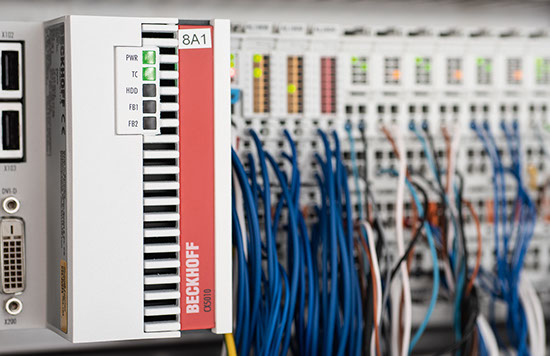

Reliable industrial motion control system and robust mechanical construction.

A robust mechanical construction combined with reliable motion controllers allows high precision pinpoint probing via a CAD interface. The industry standard modular motion controller may easily be adapted to future applications by simply loading different firmware. Encoders on all drives ensure positional loopback. All dynamic parameters such as maximum velocity, acceleration, deceleration may be adjusted to suit the specific application.



The DVS 550 loads CAD data in many different formats and allows simple probe positioning by specifying the component reference and pin number. A virtual Xray allows technicians to “see” traces as they run inside the board.



High Frequency probing

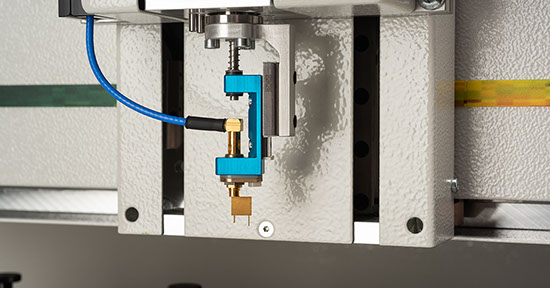

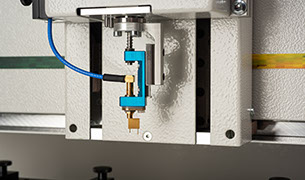

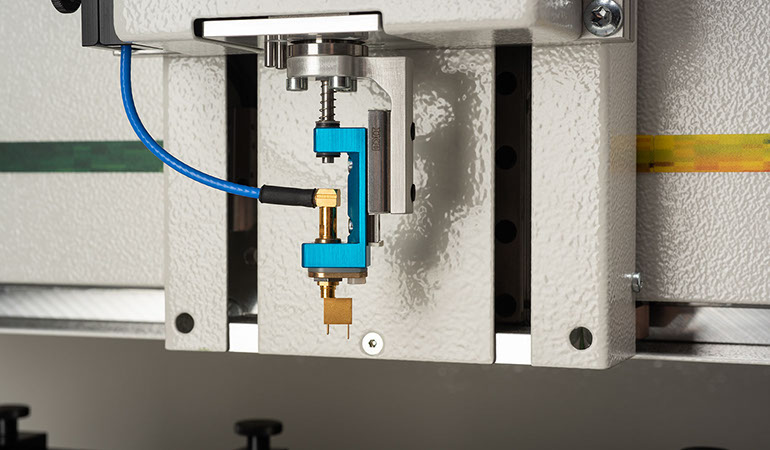

Standard Test Pins with varied grid dimensions and pin styles may be used for a majority of  probing tasks.  Specially designed pin styles are available on demand. A Rotating Probe Head supports single-ended as well as differential measurements. Small pad geometries and constantly increasing package density on circuit board assemblies complicate manual probing significantly or makes it even impossible. The DVS 550 provides outstanding advantages in such applications.

Precise control of the probing process ensures repeatable High Frequency signal acquisition far superior to manual probing
